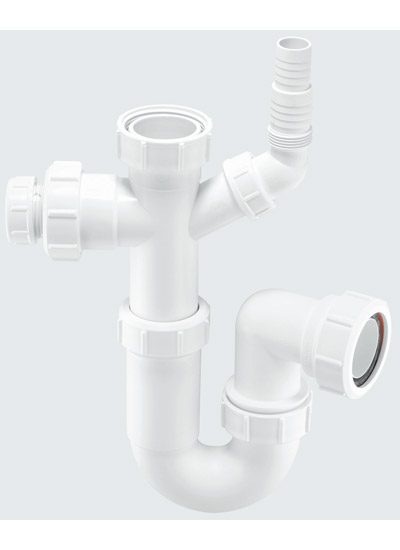

McAlpine ASC10CO swivel sink & condensate trap with 75mm seal 1.1/2" & nozzle
Stock Code: 61020397
Manufacturers Stock Code: ASC10-CO

Please log in to see our current stock levels and your pricing.

Login to Your Account


If you are an existing customer and need a website login please request one here.

If you are a new customer please apply for an account.

Technical Information

  • 1½" Outlet
  • 75mm Water Seal
  • Multifit Compression Outlet suits all plastic, copper and lead pipe
  • Connection for 19/23mm pipe to receive the discharge from condensing boiler
  • Can accept discharge from a washing or dishwashing machine
  • Supplied with blank plug allowing trap to function as a normal sink trap until the domestic appliances are connected
BrandMcAlpine
Manufacturer Stock CodeASC10-CO
EAN Code5036484008121
Length230 mm
Width240 mm
Height200 mm
Weight0.225 kg
Manufacturer Guarantee10 years
Sub-CategoryCondensate Traps
ColourWhite
BrandMcAlpine
Pack Size1
Diameter (Inches)1.5
CategoryWastes and Traps
